Single Line T-shirt Bag Making Machine

Availability:
Quantity:


PRODUCT INFORMATION

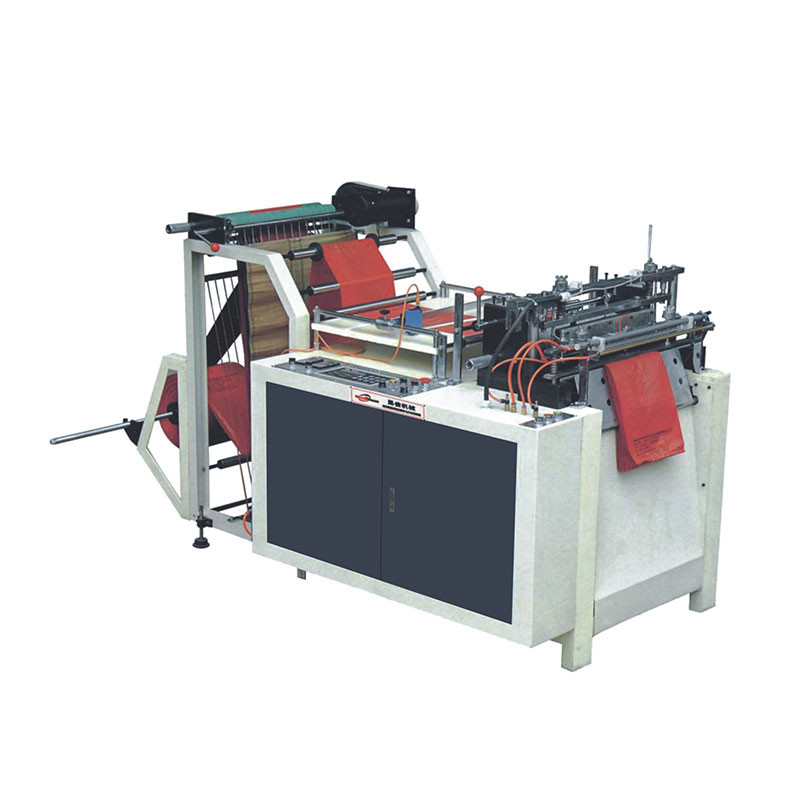

Product Name: Single Line T-shirt Bag Making Machine

Model: DFR-500/600/700

PERFORMANCE CHARACTERISTICS

1. The machine is made of HDPE, LDPE and biodegradable film to produce Semi-Automatic T-shirt bags . Adopt computer programming control system, servo motor automatically fixed length, from feeding, sealing, cutting, punching, transportation one-time completion.

2. The main engine adopts the imported inverter to simulate the speed adjustment and automatic feeding system to make the bag stable and seal accurately.

3. The cutter adopts the independent heating of the current, and the high precision temperature controller can automatically control the temperature, convenient operation and accurate temperature control.

Main Technical Parameters
ModelDFR-500DFR-600DFR-700
Cutting width30-450mm30-550mm30-650mm
Cutting length10-999mm10-999mm10-999mm
Capacity150pcs/min150pcs/min150pcs/min
Main motor1.1kw1.1kw1.5kw
Heater1.6kw1.6kw2kw
Weight750kg800kg1000kg
Machine size2.9m*1.2m*1.6m2.9m*1.4m*1.7m2.9m*1.5m*1.7m

Note: Because of technical improvements, machinery apperance, technical parameters may be changed without notice.
