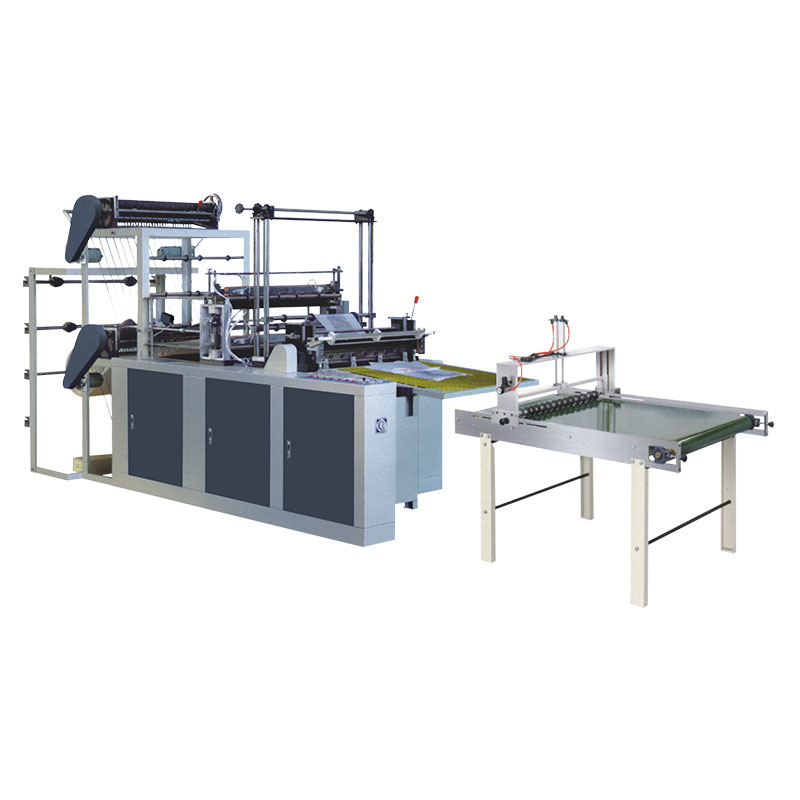

Double Layer Cold Cutting Bag Making Machine

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT INFORMATION

Model : SHXJ-B600-1200

Product Name : Double Layer Cold Cutting Bag Making Machine

PERFORMANCE AND FEATURES

This machine is suitable for making high and low pressure tank (supermarket handbag), tlat pocket (garment bag), medical bag, etc. The production of even roll bags can be optional for independent winding frame and point breaking knife. The main motor USES variable frequency motor, which makes you more efficient and more comfortable. Good pertormance of the color standard tracking device, make the sealing length more accurate, the error is smaller. The feeding is photoelectric control. Adopt advanced computer, length adjustment is convenient, accurate. The sealing knife is automatically constant temperature, so that the bag mouth is flat and firm.

Main Technical Parameters

Model

SHXJ-B600

SHXJ-B700

SHXJ-B800

SHXJ-B900

SHXJ-B1000

Cutting width

550mm

650mm

750mm

850mm

950mm

Cutting length

≤1000mm

≤1200mm

Capacity

130pcs/min*4

130pcs/min*2

100pcs/min*2

Main motor

1.1kw

1.5kw

2.2kw

Weight

700kg

750kg

800kg

1000KG

1100kg

Machine size

3.2m*1.2m*1.7m

3.2m*1.3m*1.7m

3.2m*1.4m*1.7m

3.5m*1.7m*1.9m

3.8m*1.8m*2.1m

Note: Because of technical improvements, machinery apperance, technical parameters may be changed without notice.

Double Layer Cold Cutting Bag Making Machine
