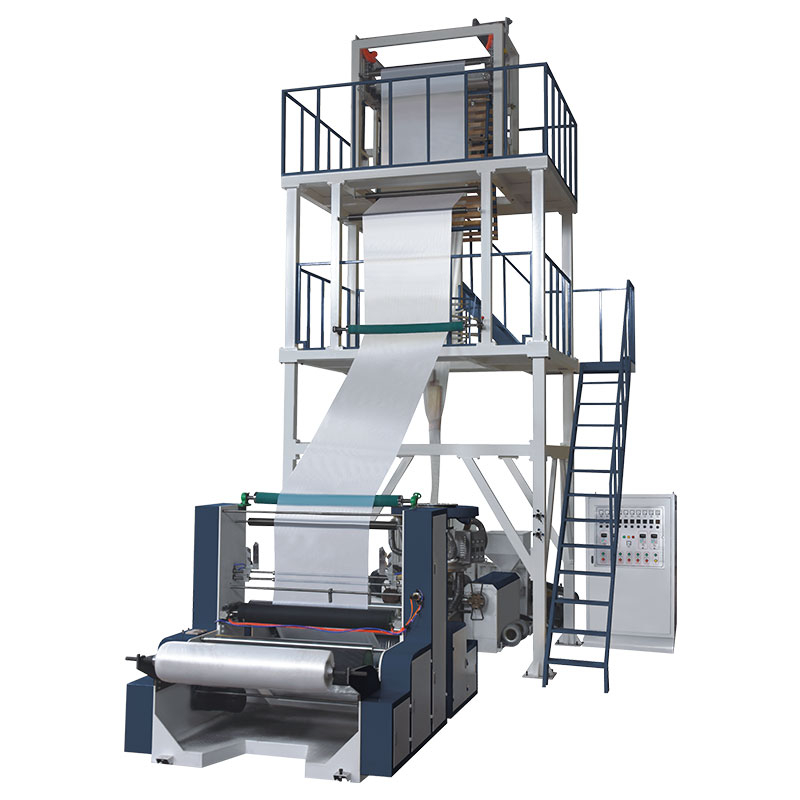

Double Layer Co-Extrusion Rotary Die Film Blowing Machine Set

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT INFORMATION

Model： QS-2G50/55/60/65

Product Name： Double Layer Co-Extrusion Roiary Die Film Blowing Machine Set

Film Width： 200-2000mm

INTRODUCTION

Co-extrusion film blowing machine is used for blowing LDPE, HDPE, LLDPE and other plastic compound film. Finished products are widely used in liquid packaging& printing &wrapping and industrial packaging.

Co-Extrusion Film Blowing Machine：

Co-extrusion film blowing machine enjoys advantages in producing HDPE, LDPE and LLDPE material. The strength of plastic film is improved by co-extrusion. Besides, with only two extrusion units, this model

Main Technical Parameters
Model	QS-2G50	QS-2G55	QS-2G60	QS-2G65
Suitable material	HDPE/LDPE/LLDPE/EVA/CACO3
Film width	200-800mm	300-1200mm	700-1500mm	1200-2000mm
Film thickness	0.02-0.2mm
Max.output	80kg/h	100kg/h	135kg/h	180kg/h
Extruder
Screw diameter	Φ50*2	Φ55*2	Φ60*2	Φ65*2
Screw L/D	30:1
Screw material	Sacm-645/38crmoala
Cylinder material	Sacm-645/38crmoala
Cylinder cooling	250w*2	250w*2	250w*2	370w*2
Main motor	15kw*2	18.5kw*2	22kw*2	30kw*2
Temperature control	3ZONE			4ZONE
Average power-consume	37kw/h	40kw/h	48kw/h	70kw/h
Die size	Φ200mm	Φ280mm	Φ400mm	Φ500mm
Temperature control	2ZONE	2ZONE	3ZONE	4ZONE
Air ring	780/1000mm	780/1000mm	1000/1400mm	1200/1600mm
Air blower	3kw	3kw	5.5kw	7.5kw
Traction unit
Roller width	900mm	1300mm	1700mm	2200mm
Traction speed	5-50m/min
Traction motor	1.5kw	1.5kw	2.2kw	2.2kw
Winding unit
Type	Surface frication type
Winding motor	1.5kw	1.5kw	2.2kw	2.2kw
Winding speed	5-50m/min
Machine size	4.83.06.2m	5.22.26.7m	5.65.87.0m	6.03.28.0m
Machine weight	2T	3T	4T	5T

Note: Because of technical improvements, machinery apperance, technical parameters may be changed without notice.
