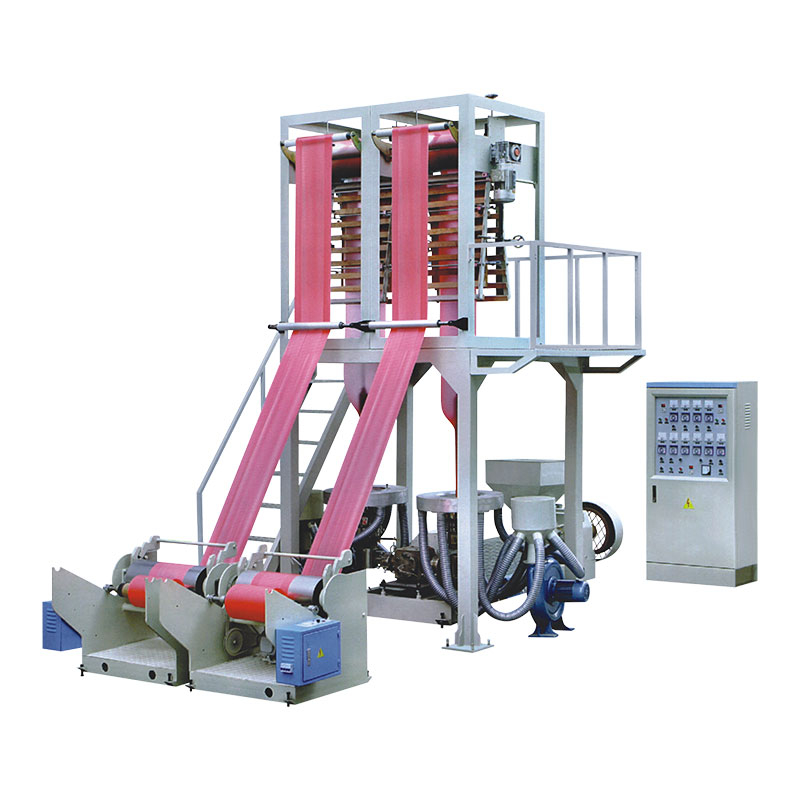

Double-Head Film Blowing Machine

Availability:
Quantity:


PRODUCT INFORMATION

Product Name:Double-Head Film Blowing Machine

Model:QS-DH65/75

Film Width:100-800mm

INTRODUCTION
This machine is used for blowing HDPE LDPE LLDPE film. Products are widely used in compound film, packaging film, agricultural filmand etc. Double head design can double the capacity of film. Machine with one extruder , two traction units and two rewinder units, it can make two film rolls at same time.
Main Technical Parameters
ModelQS-DH65QS-DH75
Suitable materialHDPE/LDPE/LLDPE
Film width200-600mm300-800mm
Film thickness0.008-0.1mm
Max.output80kg/h90kg/h
Extruder
Screw diameterΦ65Φ75
Screw L/D30:1
Screw materialSacm-645/38crmoala
Cylinder materialSacm-645/38crmoala
Cylinder cooling120w*2120w*2
Main motor37kw45kw
Temperature control3ZONE4ZONE
Average power-consume45kw/h55kw/h
Die sizeΦ60mmΦ80mm
Temperature control1ZONE1ZONE
Air ring620mm*2780mm*2
Air blower3kw*24kw*2
Traction unit
Roller width700mm900mm
Traction speed5-60m/min
Traction motor1.5kw1.5kw
Winding unit
TypeSurface frication type
Winding motor1.5kw1.5kw
Winding speed5-60m/min
Machine size4.8*2.2*4.3m5.2*2.6*4.5m
Machine weight2.5T3.0T

Note: Because of technical improvements, machinery apperance, technical parameters may be changed without notice.
