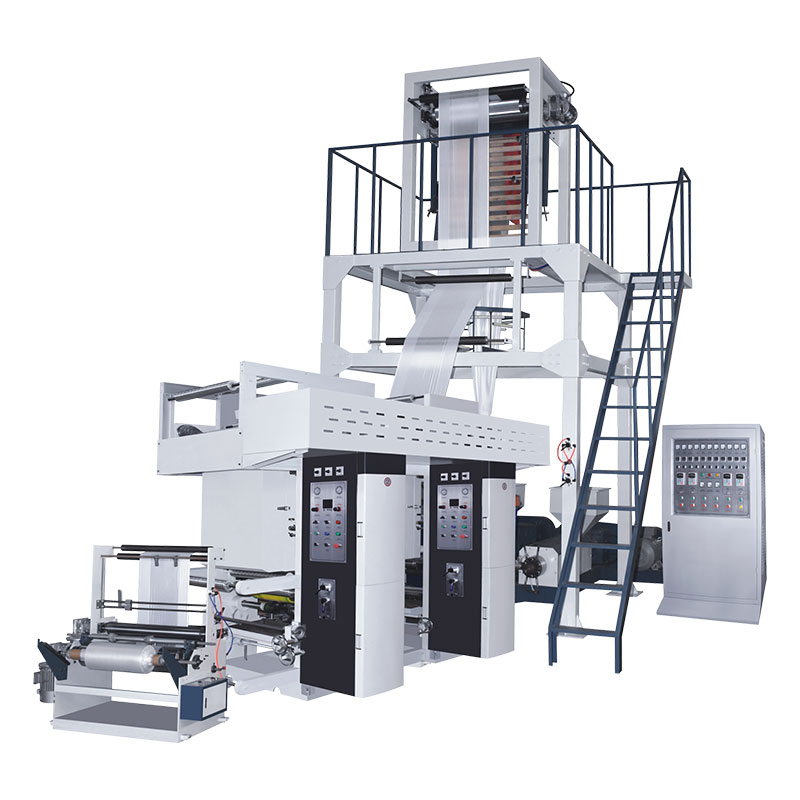

Biodegradable Material Blown Film Printing Connection Unit

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT INFORMATION

Model： QS-B50/55/60/65

Product Name： Biodegradable Material Blown Film Printing Connection Unit

INTRODUCTION

This machine is used for blowing Biodegradable (PLA/PBAT) &PE film. Biodegradable film is the new type of compostable and environmentally friendly product, more and more countries are beginning to use bags made of this material.Machine use special screw, die head and double air ring for biodegradable materials, it can work more stably to blow film.

Main Technical Parameters
Model	QS-B50	QS-B55	QS-B60	QS-B65
Suitable material	BiodegradableMaterial（PBAT/PLA)&PE
Film width	100-600mm	200-800mm	300-1000mm	400-1200mm
Film thickness	PBAT/PLA0.02-0.1mmPE0.008-0.1mm
Max.output	50kg/h	60kg/h	70kg/h	80kg/h
Extruder
Screw diameter	Φ50	Φ55	Φ60	Φ65
Screw L/D	30:1
Screw material	Sacm-645/38crmoala
Cylinder material	Sacm-645/38crmoala
Cylinder cooling	250w*2	250w*2	250w*2	250w*2
Main motor	15kw	18.5kw	22kw	30kw
Temperature control	3ZONE	3ZONE	4ZONE	4ZONE
Average power-consume	20kw/h	30kw/h	40kw/h	50kw/h
Die size	Φ60-120mm	Φ80-150mm	Φ100-220mm	Φ120-250mm
Temperature control	1ZONE	1ZONE	1ZONE	1ZONE
Air ring	620mm	780mm	780mm	780mm
Air blower	5.5kw	7.5kw	11kw	15kw
Traction unit
Roller width	700mm	900mm	1100mm	1300mm
Traction speed	5-60m/min
Traction motor	1.5kw	1.5kw	1.5kw	1.5kw
Printing unit
Printing length	191-990mm
Printing width	600mm	800mm	1000mm	1200mm
Winding unit
type	Surfacefricationtype
Winding motor	1.5kw	1.5kw	1.5kw	1.5kw
Winding speed	5-60m/min
Machine size	6.01.74.8	m6.21.95.3	m6.42.15.5	m6.62.56.0m
Machine weight	3.5T	4T	5T	6T

Note: Because of technical improvements, machinery apperance, technical parameters may be changed without notice.
