Model : DZB-400/600/800

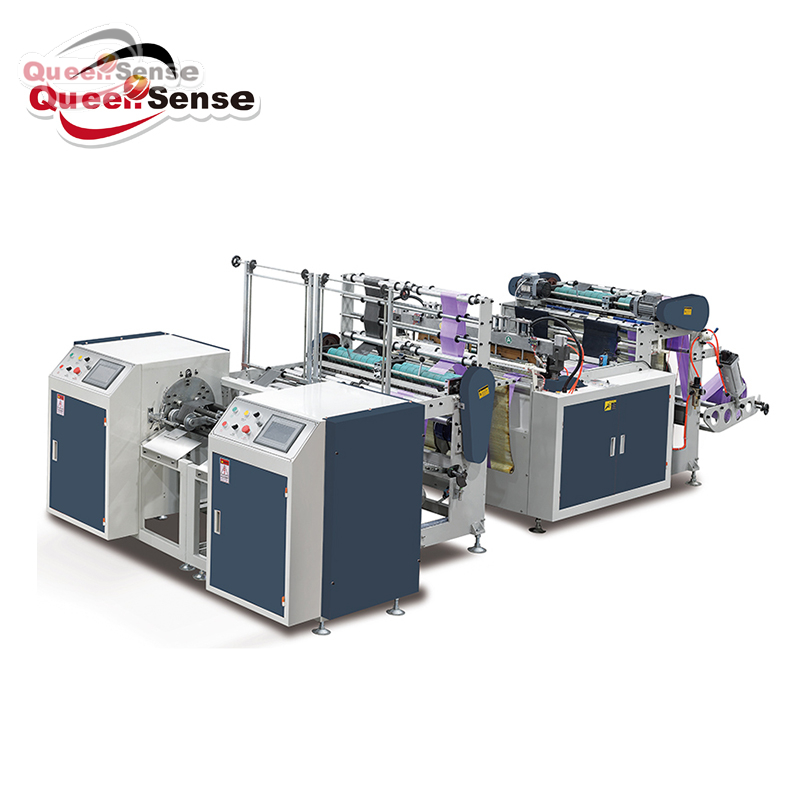

Product Name : Automatic Rolling Bag Making Machine
1. Computer automatic control, automatic counting and settable counting alarm, high efficiency, saving manpower and time.
2. From roll film to finished product bag, it is fully automatic and one-off.
3. Using Servo motor(Made in China ) to set length, photoelectric tracking, accurate and stable, photoelectric control for feeding.
4. Main motor control the speed with inverter.
5. PLC control for rewinding.
6. Frequency converter control for unloading.
Model | DZB-B400*2 | DZB-B500*2 | DZB-B600 on line |
Cutting width | 300mm*2lines | 400mm*2lines | 450mm |
Cutting length | 300-1000mm | 300-1000mm | 300-1000mm |
Output | 30-200pcs/line | 30-200pcs/line | 30-200pcs/line |
Max speed of film | 80m-120m | 80m-120m | 80m-120m |
Line | 2lines | 2lines | 1lines |
Power | 12kw | 13kw | 12kw |
Max.sealing layer | 8 | 8 | 8 |
Weight | 1600kg | 1800kg | 1400kg |
Machine size | 6.2m*1.8m*1.7m | 6.2m*2m*2.1m | 6.2m*1.8m*1.7m |
Note: Because of technical improvements, machinery apperance, technical parameters may be changed without notice.
