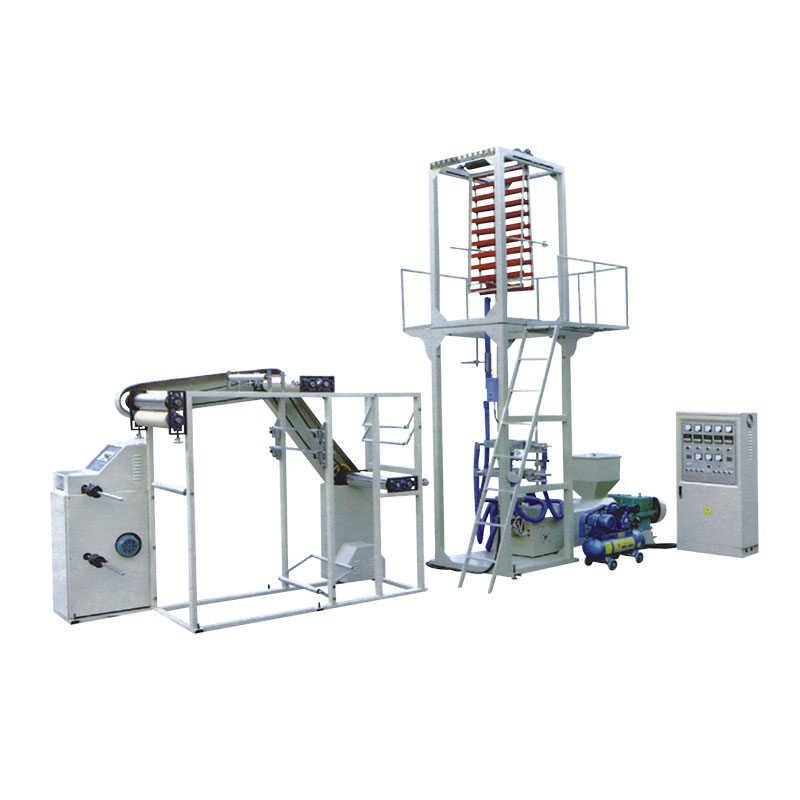

Ziplock Bag Film Blowing Machine

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT INFORMATION

Model： ZIP-55/65

Product Name： Ziplock Bag Film Blowing Machine

Film Width： 50-550mm

INTRODUCTION

This machine combines advantages of same products at abroad. The main material is LDPE, used for making ziplock bag, valve bag. Finished products are widely used in wrapping of food, cloth, medicine, hardware, decorations and daily necessities. Here come our major products: Zipper storage bag, saddle bag, Self-sealing Bag, and etc.This set enjoys quite a long benefits, such as easy open, firmness and a strong sealing property.

Main Technical Parameters
Model	ZIP-55	ZIP-65
Suitable material	LDPE
Film width	50-450mm	200-550mm
Film thickness	0.03-0.1mm
Max.output	30kg/h	30kg/h
Extruder
Screw diameter	Φ45	Φ50
Screw L/D	28:1
Screw material	Sacm-645/38crmoala
Cylinder material	Sacm-645/38crmoala
Cylinder cooling	120w	120w
Main motor	5.5kw	7.5kw
Temperature control	3ZONE	3ZONE
Average power-consume	25kw/h	30kw/h
Die size	Φ70-450mm	Φ100-600mm
Temperature control	1ZONE	1ZONE
Air ring	450mm	550mm
Air blower	1.1kw	1.5kw
Traction unit
Roller width	500mm	600mm
Traction speed	5-60m/min
Traction motor	0.75kw	1.1kw
Winding unit
Type	Centre rewinder
Winding motor	0.75kw	1.1kw
Winding speed	5-60m/min
Machine size	6.01.24.1m	6.01.64.5m
Machine weight	1.5T	1.8T

Note: Because of technical improvements, machinery apperance, technical parameters may be changed without notice.
