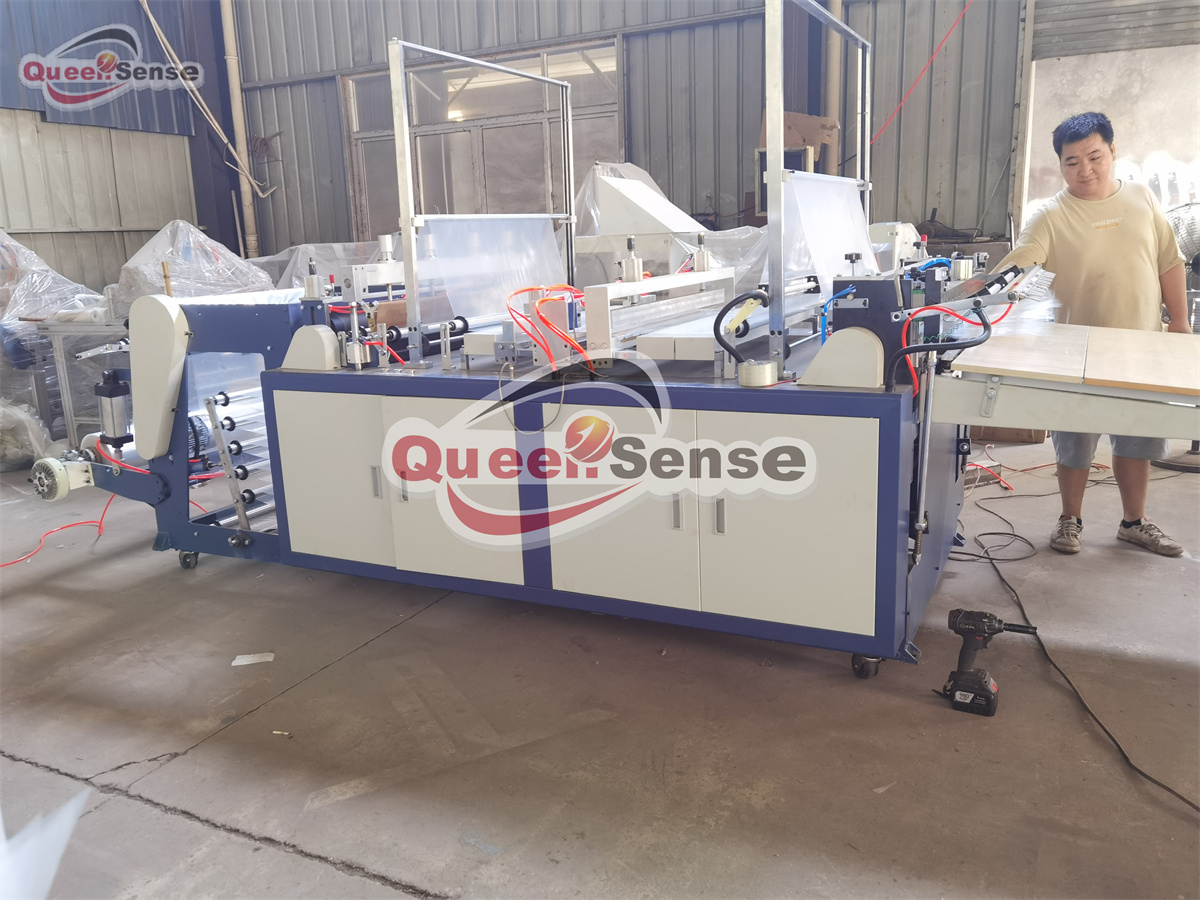

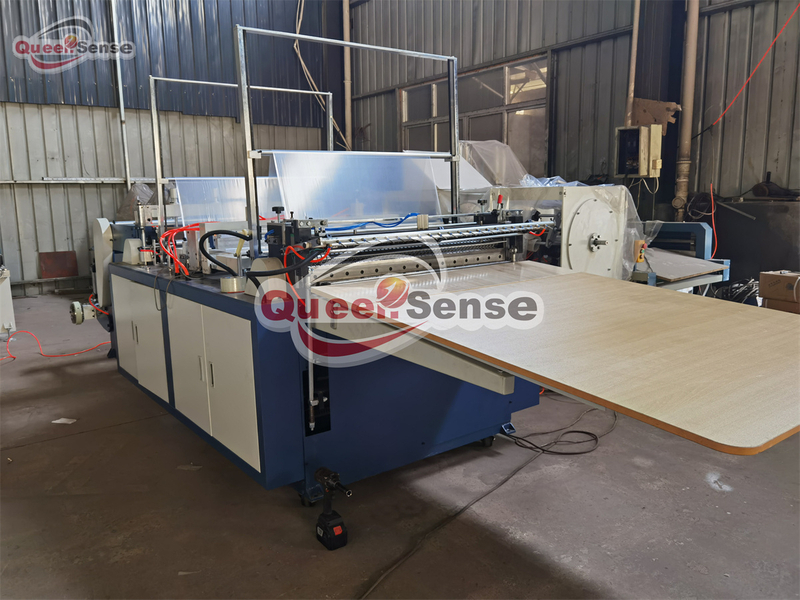

No tension one Layer Cold Cutting Bag Making Machine

Availability:
Quantity:


PRODUCT INFORMATION

Model : GFQ-1000

Product Name : One Layer Cold Cutting Bag Making Machine

PERFORMANCE AND FEATURES
This machine is suitable for making high and low pressure tank (supermarket handbag), tlat pocket (garment bag), medical bag, etc. The production of even roll bags can be optional for independent winding frame and point breaking knife. The main motor USES variable frequency motor, which makes you more efficient and more comfortable. Good pertormance of the color standard tracking device, make the sealing length more accurate, the error is smaller. The feeding is photoelectric control. Adopt advanced computer, length adjustment is convenient, accurate. The sealing knife is automatically constant temperature, so that the bag mouth is flat and firm.
Main Technical Parameters
ModelGFQ-600GFQ-700GFQ-800GFQ-900GFQ-1000
Cutting width550mm650mm750mm850mm950mm
Cutting length≤1000mm≤1000mm≤1000mm≤1000mm≤1200mm
Capacity130pcs/min*4130pcs/min*4130pcs/min*4130pcs/min*2100pcs/min*2
Main motor1.1kw1.1kw1.5kw1.5kw2.2kw
Weight700kg750kg800kg1000KG1100kg
Machine size3.2m*1.2m*1.7m3.2m*1.3m*1.7m3.2m*1.4m*1.7m3.5m*1.7m*1.9m3.8m*1.8m*2.1m

Note: Because of technical improvements, machinery apperance, technical parameters may be changed without notice.
