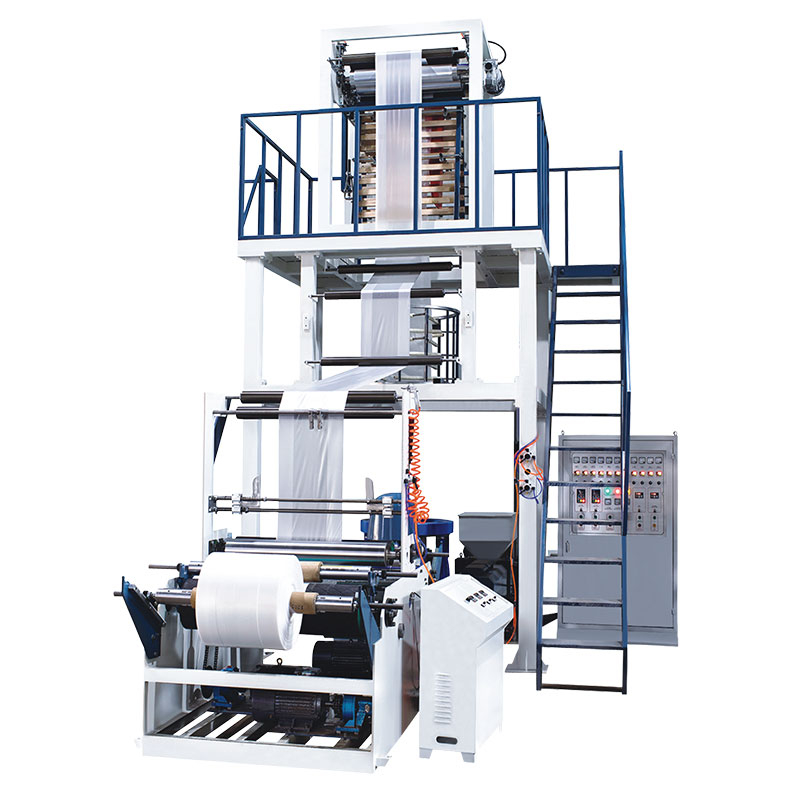

High Speed Film Blowing Machine

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT INFORMATION

Model： QS-A-H50/55/60/65

Product Name： High Speed Film Blowing Machine

Film Width： 100-1200mm

INTRODUCTION

This machine is used for blowing HDPE LDPE LLDPE film. Products are widely used in compound film, packaging film, agricultural film, and etc. The main motor is equipped with inverter to adjust speed and increase stability. The screws is made in High speed bimetallic materials,effectively increase 30% production more than standard type machines.

Main Technical Parameters
Model	QS-A-H50	QS-A-H55	QS-A-H60	QS-A-H65
Suitable material	HDPE/LDPE/LLDPE
Film width	100-600mm	200-800mm	300-1000mm	400-1200mm
Film thickness	0.008-0.15mm
Max.output	65kg/h	75kg/h	85kg/h	95kg/h
Extruder
Screw diameter	Φ50	Φ55	Φ60	Φ65
Screw L/D	30:1
Screw material	Sacm-645/38crmoala
Cylinder material	Sacm-645/38crmoala
Cylinder cooling	250w*2	250w*2	250w*2	250w*2
Main motor	22kw	30kw	37kw	45kw
Temperature control	4ZONE	4ZONE	5ZONE	5ZONE
Average power-consume	30kw/h	40kw/h	45kw/h	55kw/h
Die size	Φ60-120mm	Φ80-150mm	Φ100-220mm	Φ120-250mm
Temperature control	1ZONE	1ZONE	1ZONE	1ZONE
Air ring	650mm	800mm	800mm	800mm
Air blower	5.5kw	7.5kw	11kw	15kw
Traction unit
Roller width	700mm	900mm	1100mm	1300mm
Traction speed	5-100m/min
Traction motor	1.5kw	1.5kw	1.5kw	1.5kw
Winding unit
Type	Surface frication type
Winding motor	1.5kw	1.5kw	1.5kw	1.5kw
Winding speed	5-100m/min
Machine size	4.11.76.0m	4.81.96.2m	5.52.16.5m	5.82.56.8m
Machine weight	2T	3T	3.5T	4T

Note: Because of technical improvements, machinery apperance, technical parameters may be changed without notice.

High Speed Film Blowing Machine High Speed Film Blowing Machine QS-A-H50I55I60I65 HD&LD FHm Blowing Machine (PE Shrinkable Film Blowing Machine)
