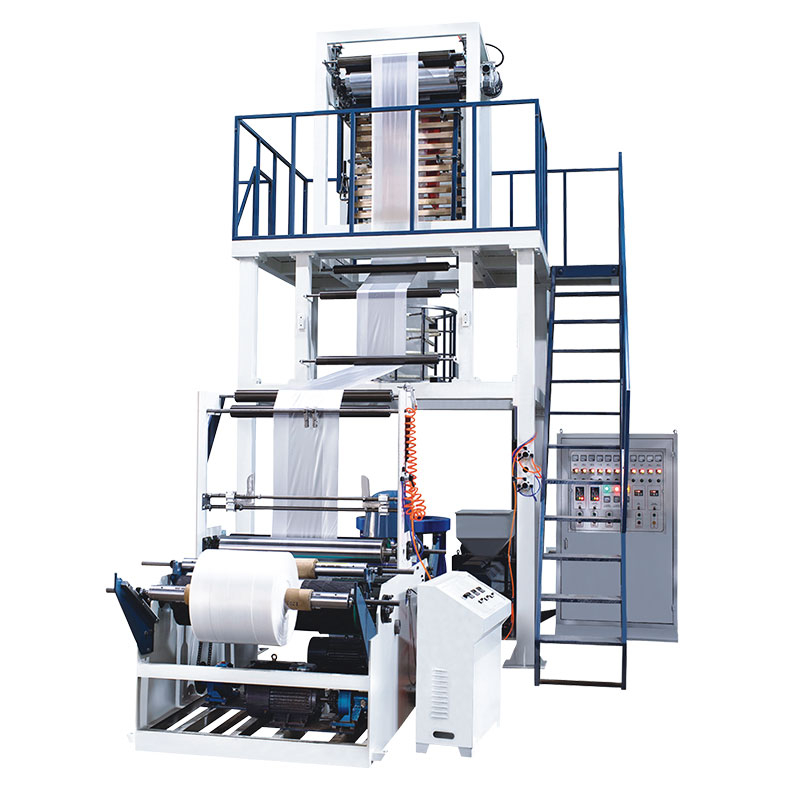

HD&LD Film Blowing Machine (PE Shrinkable Film Blowing Machine)

Availability:
Quantity:


PRODUCT INFORMATION

Model: QS-A50/55/60/65

Product Name: HDPE & LDPE Film Blowing Machine (PE Shrinkable Film Blowing Machine)

Film Width: 100-1200mm

INTRODUCTION

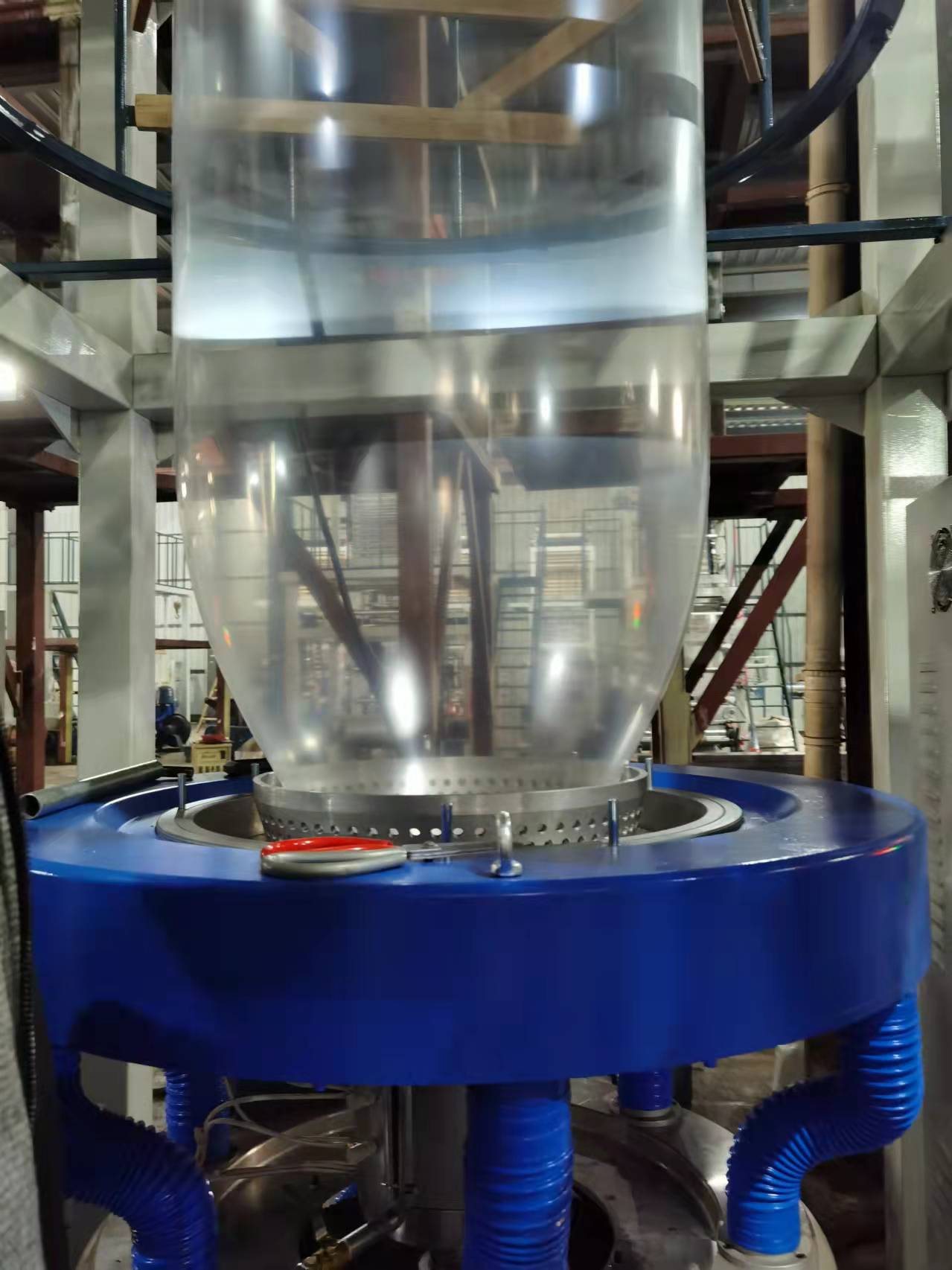

This machine is used for blowing HDPE LDPE LLDPE film. Products are widely used in compound film, packaging film, agricultural film and etc. The main motor is equipped with inverter to adjust speed and increase stability. Besides, this machine can save 30% electricity compared with normal machines. The screws & barrels are made in 38 chrome molybdenum aluminium with Nitriding treatment. There traction unit is flexible with the help of up and down traction, making a better cooling effect in blowing film.

Main Technical Parameters
ModelQS-A50QS-A55QS-A60QS-A65
Suitable materialHDPE/LDPE/LLDPE
Film width100-600mm200-800mm300-1000mm400-1200mm
Film thickness0.008-0.1mm
Max.output50kg/h60kg/h70kg/h80kg/h
Extruder
Screw diameter¦50¦55¦60¦65
Screw L/D30:1
Screw materialSacm-645/38crmoala
Cylinder materialSacm-645/38crmoala
Cylinder cooling250w*2250w*2250w*2250w*2
Main motor15kw18.5kw22kw30kw
Temperature control3ZONE3ZONE4ZONE4ZONE
Average power-consume20kw/h30kw/h40kw/h50kw/h
Die size¦60-120mm¦80-150mm¦100-220mm¦120-250mm
Temperature control1ZONE1ZONE1ZONE1ZONE
Air ring620mm780mm780mm780mm
Air blower3kw4kw5.5kw7.5kw
Traction unit
Roller width700mm900mm1100mm1300mm
Traction speed5-60m/min
Traction motor1.5kw1.5kw1.5kw1.5kw
Winding unit
TypeSurface frication type
Winding motor1.5kw1.5kw1.5kw1.5kw
Winding speed5-60m/min
Machine size4.1*1.7*4.3m4.8*1.9*4.5m5.5*2.1*4.8m5.8*2.5*5.0m
Machine weight1.5T2T2.5T3T

Note: Because of technical improvements, machinery apperance, technical parameters may be changed without notice.
