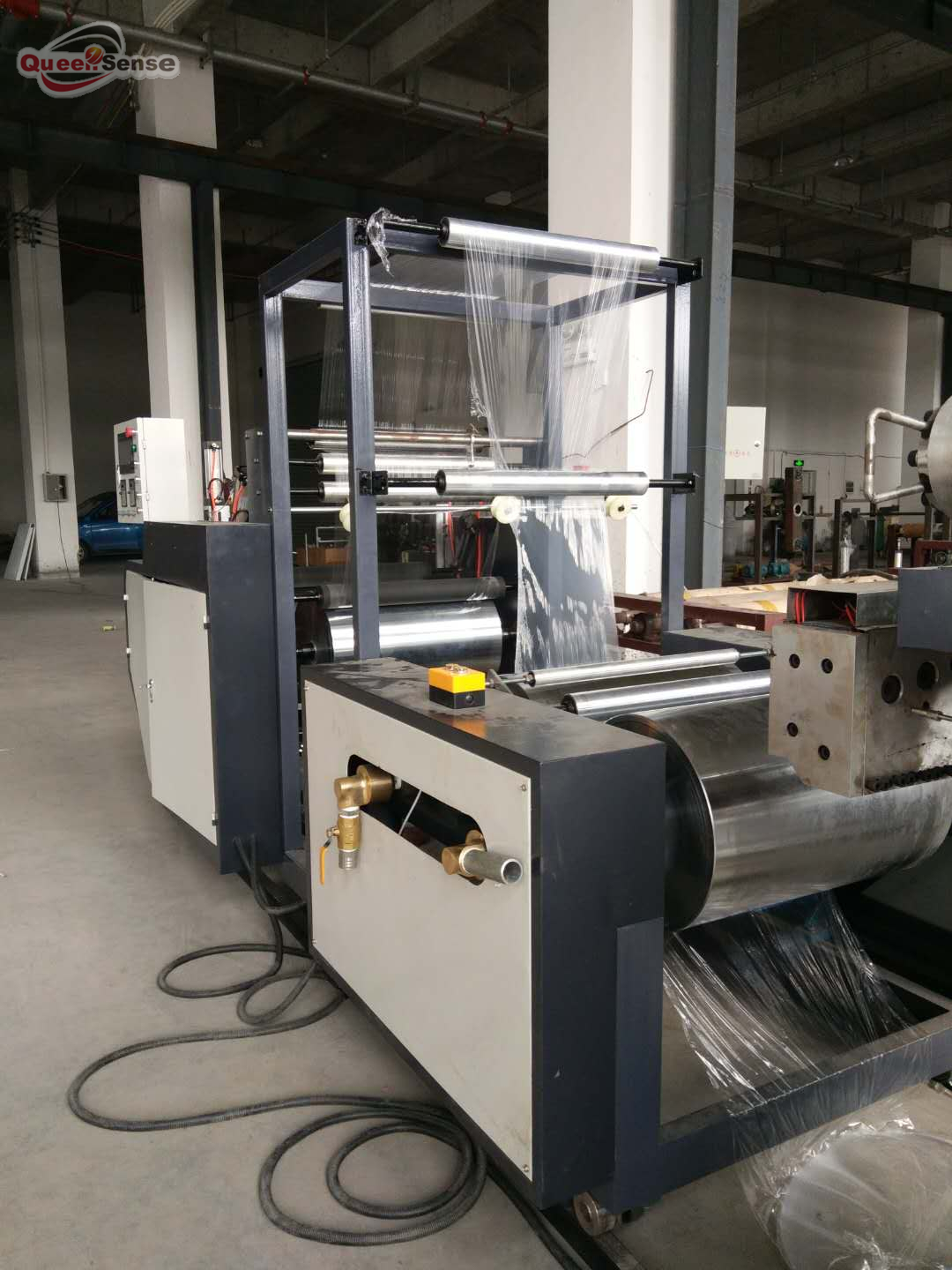

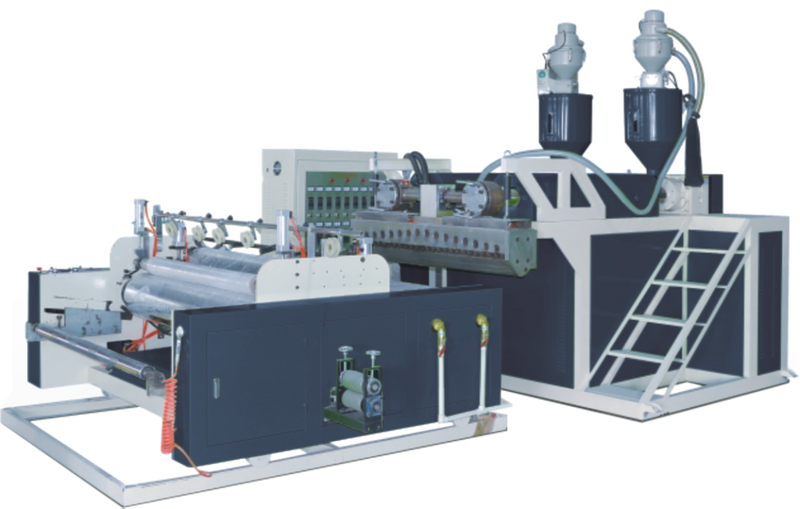

Polythylene Air Bubble Film Making Machine for bubble sheet
PE Air bubble film making machine adopts once-through shaping technique, thus has high efficiency and excellent product quality. This machine set has such features as scientific and reasonable structure design, smooth and reliable running and convenient operation and maintenance.
Polyethylene air-cushion film (also called polyethylene bubble film), which is divided into two kind: ordinary polyethylene air-cushion film and composite polyethylene air-cushion film, is a kind of packing material which has been widely used at present. It not only has good cushioning effect, shock resistance and heat-sealing performance, but also has such advantages as good corrosion resistance and transparency , etc. So it has been widely used for packing, household wares, post parcel, bicycle , polyurethane furniture, etc.
Main Technical Parameters :
| Model | QS-S55(500) | QS-S65(1000) |
| Screw Diameter | 55mm/45mm | 65mm/55mm |
| L/D | 28:1 | 28:1 |
| Width | 200-500mm | 500-1000mm |
| Thickness | 0.015mm-0.04mm | 0.015mm-0.04mm |
| Max.output | 50-70kgs | 100kgs |
| Motor Power | 15/7.5kw | 18.5/11kw |
| Heating Power | 30kw | 30kw |
| Total Power | 65kw | 78kw |
| Machine weight | 4000kgs | 5000kgs |
| overall dimension | 2.6*2.3*2m | 6*3.0*2m |
| Power supply | 380V 50Hz | 380V/50Hz |
|
|
|
Optional Equipment :
1,Chiller
2, Hydraulic screen changer / Fast net changer
3, Auto changing Rewinder
4, Mixer
5, Scrap Receiver
6, Grinder
7, Auto Cutting Rewinding
