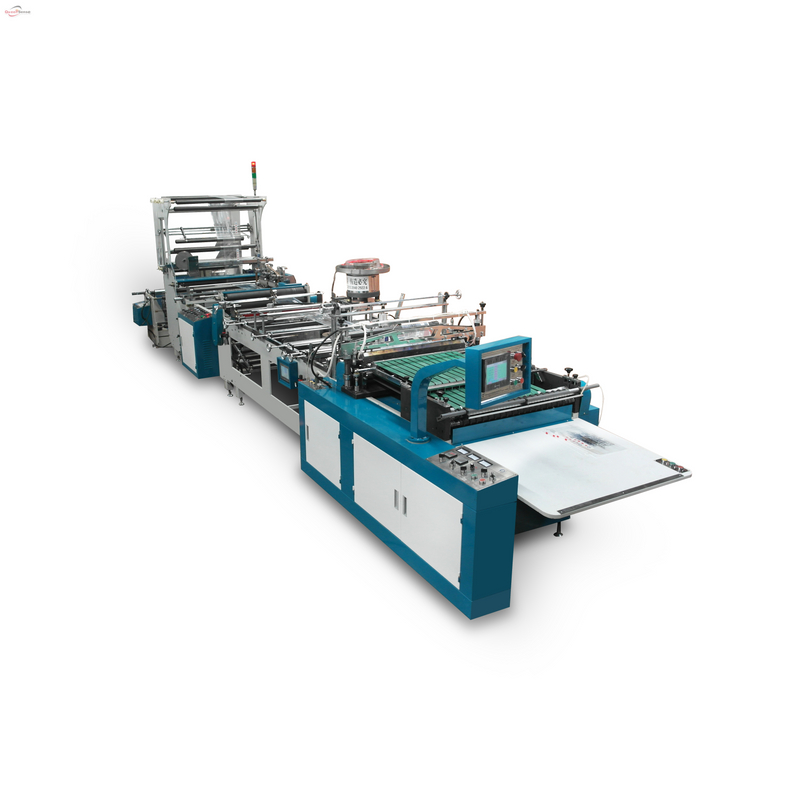

1. This machine has following functions: edge-folding, end-folding, heat-fitting, spot-cutting, drilling, welding, and heat-cutting. It can be used to manufacture various types of clip-chain sealing bags, such as inside heat-fitting with spot-cutting, outside heat-fitting with locks.
2. This machine has used advanced computer-controlled, liquid crystal display and automatic serving motor-driven. It can cut clip-chain and film, automatically alarm, shut down automatically when no material, stop printing automatically when electric eyes lapse, stop working automatically when temperature is not enough, and fold edges by using photoelectric corrective hemming and magnetic tension.
3. This machine operates easily, seals firmly and has quality appearance.
The whole procedure is operated automatically from single film raw material to electric eyes correcting, edge folding, end folding, zipper fitting, pasting, edge welding, edge cutting, ultrasonic wave, electronic eyes printing, drilling, heat cutting, and automatically counting.
Model | QS-800 |
Raw Material | LDPP-PE-PP-HDPE |
Heater | 3.8kw |
Bag Making Width | 100-650mm |
Bag Making Length | 100-650mm |
Bag Making Speed | 40-100pc/min |
Film Thickness | 0.04-0.15mm(single layer) |
Servo motor | 2.0kw |
Main motor | 1.5kw |
Food-out motor | 0.75kw |
Ultrasonic | 2kw |
Feeding motor | 0.75kw |
Fold the membrane motor | 0.55kw |
Cooling | 0.55kw |
Voltage | 380V/50Hz |
Power | 15kw |
Computer | DELTA PLC touch screen |
Touch screen | Delta One set |
Puncher | One set (6mm hole) |
Magnetic power | Magnetic power tension for feeding |
Unwinder | Pneumatic cylinder up and down |
EPC | EPC one set |
Dimension(L×W×H) | 8600*1650*1800mm |
