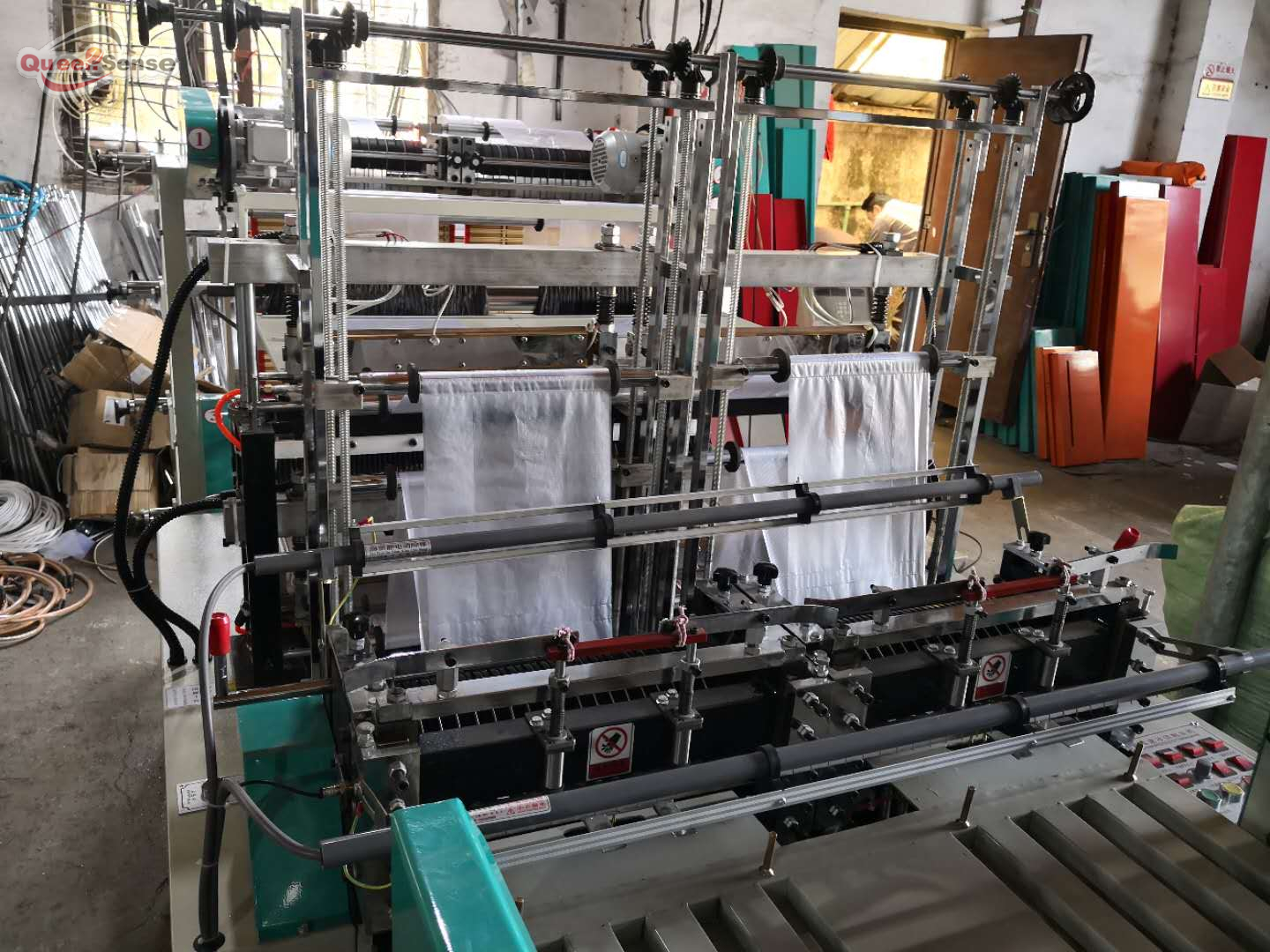

Automatic Cold Cutting T Shirt Bag Making Machine

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT INFORMATION

Model : SHXJ-C700 /900

Product Name : Automatic cold cutting t shirt bag making machine

USES

This machine is suitable for sealing and cutting high-density polyethylene(HDPE) ,low-density polyethylene(LDPE) and polypropylene(PP) plastic film,that is the best equipment for producing high and low pressure plastic film vest bag (supermarket handbag).
This machine is equipped with photoelectric automatic control feeding device,automatic constant temperature control device ,electrostatic removing device,auto counting and alarm device,etc.With such characteristics as automatic process of bag-making ,easy operation,stable performance and firm bottom sealing.

PERFORMANCE AND FEATURES

1. The whole machine is controlled by microcomputer, variable frequency and stepper motor (optional servo motor control system).

2. Arbitrarily fixed length, step length photoelectric tracking, accurate, stable, automatic stop of the mark.

3. Automatically synchronize double-sided tape, automatic punching.

4. Hot sealing lace, automatic constant temperature, sealing strong and flat

Main Technical Parameters
Model	SHXJ-C700	SHXJ-C900
Cutting width	300MM*2	400mm*2
Cutting length	<1000mm	<1000mm
Capacity	130pcs/min*4	130pcs/min*4
Main motor	1.5kw	2.2kw
Heater	1.6kw	2.5KW
Weight	1100kg	1300kg
Machine size	6.3m1.6m2.0m	6.3m1.8m2.0m

Note: Because of technical improvements, machinery apperance, technical parameters may be changed without notice.

Automatic t shirt bag making machine 4line cold cutting t shirt bag making machine T shirt bag making machine
