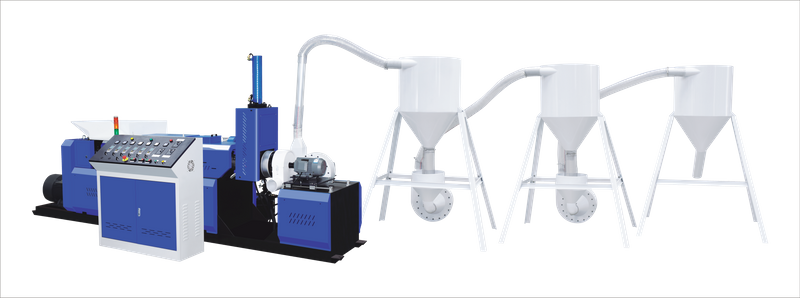

Air Cooling Hot Cutting Plastic Film Recycling Machine
This raw materials like waste films of HDPE and LDPE are extruded through the extruder, and then are cooled through wind and cut hotly into granules, featuring in fine quality, bubble free and moisture free. The machine is equipped with a forced feeder, fast screen changer and automatic temperature-controller.
1. Hot-cutting & wind cooling.
2. It is equipped with automatic constant temperature, motorized net changer (hydraulic net changer is optional).
3. It also can pelletize the crushing material after fitting with an force loader.
4. The cutting machine adopts speed regulating motor. Which can cut the material according to the feeding speed of the extruder, with such features as high output, low noise, stable performance and easy operation. It is a more ideal waste plastic film regenerative pelletizer.
5. Feeding unit adopts force feeder.
6. The helical gear reducer with hard teeth is applied to the extruder and the screw.
7. Cylinder and screw are made of 38CrMoA1A with nitrogen treatment.
Features:
1.)The produce of Regeneratire without air hole and water.
2.)easy operation, low cost high ourput
3.)automatic constant temperature control.
4.)Automatic change filtrate wed stable performance.
5.)Long operating life and low noise, it is a more ideal wast plastics film regenerative pelletizer.
Main Technical Parameters :
| Model | SJ-A75 | SJ-A90 | SJ-A100 |
| Suitable material | LDPE,HDPE,CPE,PLA
| HDPE
|
| Max.output | 30-60kg
| 60-90kg
| 80-100kg |
| Screw diameter | 75
| 90 | 100 |
| Screw L/D | 10:1 | 10:1 | 10:1 |
| Screw material | 38 crmoala | 38 crmoala | 38 crmoala |
| Cylinder material | 38 crmoala | 38 crmoala | 38 crmoala |
| Main motor | 15kw
| 18.5kw | 22kw |
| Machine size | 800kg | 900kg | 2800kg |
